System Design » Typical Systems
Refueling Vapors through Canister System
Refueling vapors vent through the canister while refueling. Fill is conventional (non-venting)

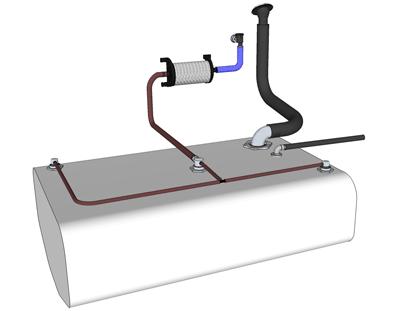

Typical system of refueling vapors through the canister
Refueling Vapors through Fuel Fill System
Refueling vapors bypass canister and vent through a vented fill to the fuel pump. This line is then closed with a sealed cap after refueling and diurnal vapors forced through the canister. This approach provides the least restriction during refueling.
Typical system of refueling vapors through the fuel fill
EnviroFill System
EnviroFill description goes here.
EnviroFill System
